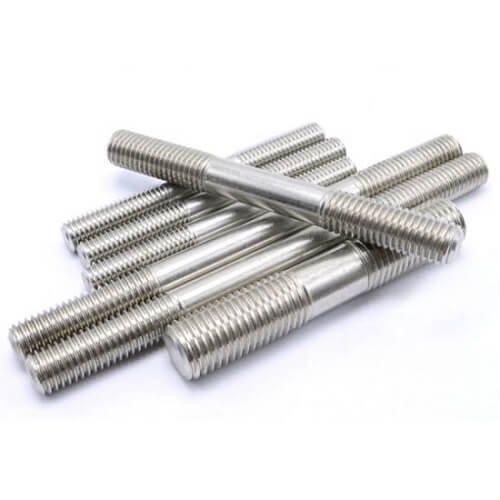

Hastelloy C22 Stud Bolt
ASTM B574 Hastelloy C22 Double End Stud Bolt, UNS N06022 Half Threaded Rod, UNS N06022 Half Threaded Stud Bolt, ASME SB574 Hastelloy C22 Full Threaded Stud Bolt, Hastelloy C22 Tap End Threaded Rod, Hastelloy C22 Full Threaded Rod.
fas10 is a recognized and certified company, and it is known for manufacturing, supplying, and exporting Hastelloy C22 Stud Bolt. We have years of expertise in the manufacturing industry. In addition to providing Stud Bolt with outstanding quality, we also provide a wide variety of sizes, types, dimensions, and requirements for our customers to choose from. Hastelloy C22 is a versatile alloy that has high resistivity qualities. Its elemental composition is nickel, chromium, molybdenum, and tungsten, making it a good choice for use in various applications.
Because of the greater chromium concentration, the material exhibits extraordinary resistance to oxidizing conditions. The presence of tungsten and molybdenum gives resistance to corrosion and reducing environments, respectively. Outstanding resistance against pitting and crevice corrosion cracking, and the Hastelloy grade provides stress corrosion cracking. The presence of nickel provides resistance to corrosion caused by aqueous environments. These Stud Bolts perform better even when exposed to acids like acetic, nitric, and formic in addition to chlorides. These Stud Bolts have a long working life in both inorganic and organic chemicals and are very resistant to corrosion.
![industrial](https://www.fas10.in/wp-content/uploads/2022/06/industrial.gif)
![ss 904l stud bolt](https://www.fas10.in/wp-content/uploads/2022/09/ss-904l-stud-bolt.jpg)
About Hastelloy C22 Stud Bolt
ASTM B574 Hastelloy C22 Double End Threaded Rod, DIN 2.4602 Tap End Stud Bolt, UNS N06022 Flange Stud Bolt, Hastelloy C22 Bonding Stud Bolt, ASTM B574 Hastelloy C22 Double End Stud Bolt With Reduced Shank.
fas10 is dedicated to providing our esteemed clients with DIN 2.4602 Tap End Stud Bolt of exceptional quality that is designed to fulfill all of their specific requirements. Fabricating Stud Bolts that are accurate in terms of dimensions and efficient in their use is a top priority for our experts and workers as they strive to fulfill the requirements outlined by our customers. These Stud Bolts have better tensile strength, a perfect finish, a strong structure, easy formability and weldability, and excellent corrosion resistance. Our Stud Bolts are able to readily withstand the greater temperatures and pressures that are required for their services because of the outstanding qualities that they possess. In order to improve both the quality and the performance of these Stud Bolts, they are designed to make use of contemporary tools and cutting-edge methods. We are stocking a significant quantity of UNS N06022 Flange Stud Bolt to meet our client’s requirements in the shortest time possible.
Hastelloy C22 Stud Bolt Specification
Specifications | ASTM B574 / ASME B574 |
Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
Size | M3 - M100 | 3/6″ - 4″ | Custom Sizes |
Length | 3 mm - 200 mm | Custom Sizes |
Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Form | Hex, Threading, Square, Round as per Gauge Etc. |
Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
Surface Treatment | Passivation /plain |
Others Factor | OEM, ODM, ±0.03MM tolerance |
Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
Packing | IN BULK: carton, pallet, Small Boxes or customer request |
Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Certification | Dual Certified As per ASTM & ASME Codes |
Delivery time | Regular product : 7-15 days, Custom product : 2-4 weeks |
Place of Origin | India |
Equivalent Grades Hastelloy C22 Stud Bolt
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
Hastelloy C22 | N06022 | 2.4602 | - | NiCr21Mo14W | NW 6022 | - | - |
Chemical Composition Hastelloy C22 Stud Bolt
Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
Mechanical Properties Hastelloy C22 Stud Bolt
Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
Dimensions Of Hastelloy C22 Stud Bolt
Hastelloy C22 Stud Bolts Dimensions Chart :
![stud Dimensions](https://www.fas10.in/wp-content/uploads/2022/07/stud-Dimensions.png)
Nominal Size Diameter, D inch | Tap End Full Thread Length, BM | Umax = 2P | Minimum Nut End Full Thread Length, Bmin |
||||||
Nominal | Min. | Max. | UNC & NC-5 Thread | UNF Thread | 8UN Thread | L ≤ 10 | 10 < L ≤ 16 | L > 16 | |
1/4 | 0.375 | 0.350 | 0.400 | 0.100 | 0.071 | ... | 0.750 | 1.000 | 1.500 |
5/16 | 0.469 | 0.440 | 0.498 | 0.111 | 0.083 | -- | 0.875 | 1.125 | 1.625 |
3/8 | 0.563 | 0.532 | 0.594 | 0.125 | 0.083 | -- | 1.000 | 1.250 | 1.750 |
7/16 | 0.656 | 0.620 | 0.692 | 0.143 | 0.100 | -- | 1.125 | 1.375 | 1.875 |
1/2 | 0.750 | 0.708 | 0.792 | 0.154 | 0.100 | -- | 1.250 | 1.500 | 2.000 |
9/16 | 0.844 | 0.802 | 0.896 | 0.167 | 0.111 | -- | 1.375 | 1.625 | 2.125 |
5/8 | 0.938 | 0.892 | 0.983 | 0.182 | 0.111 | -- | 1.500 | 1.750 | 2.250 |
3/4 | 1.1.25 | 1.075 | 1.175 | 0.200 | 0.125 | -- | 1.750 | 2.000 | 2.500 |
7/8 | 1.313 | 1.258 | 1.368 | 0.222 | 0.143 | -- | 2.000 | 2.250 | 2.750 |
1 | 1.500 | 1.438 | 1.562 | 0.250 | 0.167 | -- | 2.250 | 2.500 | 3.000 |
1 1/8 | 1.688 | 1.625 | 1.750 | 0.286 | 0.167 | 0.250 | 2.500 | 2.750 | 3.250 |
1 1/4 | 1.875 | 1.813 | 1.938 | 0.286 | 0.167 | 0.250 | 2.750 | 3.000 | 3.500 |
1 3/8 | 2.063 | 2.000 | 2.125 | 0.333 | 0.167 | 0.250 | 3.000 | 3.250 | 3.750 |
1 1/2 | 2.250 | 2.188 | 2.313 | 0.333 | 0.167 | 0.250 | 3.250 | 3.500 | 4.000 |
1 5/8 | 2.438 | 2.375 | 2.500 | -- | -- | 0.250 | 3.500 | 3.750 | 4.250 |
1 3/4 | 2.625 | 2.563 | 2.688 | 0.400 | -- | 0.250 | 3.750 | 4.000 | 4.500 |
1 7/8 | 2.813 | 2.750 | 2.875 | -- | -- | 0.250 | 4.000 | 4.250 | 4.750 |
2 | 3.000 | 2.925 | 3.075 | 0.444 | -- | 0.250 | 4.250 | 4.500 | 5.000 |
2 1/4 | 3.375 | 3.300 | 3.450 | 0.444 | -- | 0.250 | 4.750 | 5.000 | 5.500 |
2 1/2 | 3.750 | 3.675 | 3.825 | 0.500 | -- | 0.250 | 5.250 | 5.500 | 6.000 |
2 3/4 | 4.125 | 4.050 | 4.200 | 0.500 | -- | 0.250 | 5.750 | 6.000 | 6.500 |
3 | 4.500 | 4.425 | 4.575 | 0.500 | -- | 0.250 | -- | 6.500 | 7.000 |
3 1/4 | 4.875 | 4.775 | 4.975 | 0.500 | -- | 0.250 | -- | 7.000 | 7.500 |
3 1/2 | 5.250 | 5.150 | 5.350 | 0.500 | -- | 0.250 | -- | 7.500 | 8.000 |
3 3/4 | 5.625 | 5.525 | 5.725 | 0.500 | -- | 0.250 | -- | 8.000 | 8.500 |
4 | 6.000 | 5.900 | 6.100 | 0.500 | -- | 0.250 | -- | 8.500 | 9.000 |
Different Types Of Hastelloy C22 Stud Bolt
Different Types Of Studs Bolts:
![Full Threaded Stud Bolt](https://www.fas10.in/wp-content/uploads/2022/09/Full-Threaded-Stud-Bolt.jpg)
ASTM B564 Hastelloy C22 Full Threaded Stud Bolt
![Bonding Stud Bolt Flange Stud Bolts](https://www.fas10.in/wp-content/uploads/2022/09/Bonding-Stud-Bolt-Flange-Stud-Bolts.jpg)
Hastelloy C22 Bonding Stud Bolt / Flange Stud Bolts
![Double End Stud Bolts with Reduced Shank](https://www.fas10.in/wp-content/uploads/2022/09/Double-End-Stud-Bolts-with-Reduced-Shank.jpg)
Hastelloy C22 Double End Stud Bolts with Reduced Shank
![Double End Stud Bolt](https://www.fas10.in/wp-content/uploads/2022/09/Double-End-Stud-Bolt.jpg)
C22 Hastelloy Double End Stud Bolt
![Clinch Stud Bolt](https://www.fas10.in/wp-content/uploads/2022/09/Clinch-Stud-Bolt.jpg)
Hastelloy C22 Clinch Stud Bolt
![Weld Stud Bolt](https://www.fas10.in/wp-content/uploads/2022/09/Weld-Stud-Bolt.jpg)
C22 Hastelloy Weld Stud Bolt
![Dowel Screw type Stud Bolt](https://www.fas10.in/wp-content/uploads/2022/09/Dowel-Screw-type-Stud-Bolt.jpg)
Hastelloy C22 Dowel Screw type Stud Bolt
![Half Threaded Stud Bolt](https://www.fas10.in/wp-content/uploads/2022/09/Half-Threaded-Stud-Bolt.jpg)
DIN 2.4602 Half Threaded Stud Bolt
![tap end stud bolts](https://www.fas10.in/wp-content/uploads/2022/09/tap-end-stud-bolts.jpg)
